Kenwood CP-C7 "Walkman" and Repair

I have been wanting an ultra-thin walkman for a while...preferably with Dolby c. So I found this Kenwood cp-c7 (technically not a walkman since it is not Sony). Bad cosmetic condition. But it does work... sort of. It has some serious battery corrosion.

To clean it, I have to open it up and that is not an easy task. The buttons are printed upon soft PCB films, which are stuck to the plastic frame by adhesive. The circuit board inside is thin and fragile. The worst part is that, after unscrewing all the screws, I still found myself unable to take out the board. I thought it was held together by double-sided tapes, so I tried to pry it open carefully, not aware that a solenoid was attached to both the PCB board and the mechanical frame. That did not end well. The solenoid was broken. Looking back to it, I should have tried harder tracking down the service manual.

So I had to rebuild the coil and add new soldering leads (and of course, clean up the corrosion inside the walkman also). The belt seemed fine with enough tension. Although this device is designed to run on a single gum stick battery, in practice, the w&f seems rather unstable when running on a gum stick, likely due to the lower voltage. So I use a 5V-to-1.5V converter, which ensures a constant voltage supply (it was later modded to run a single AA battery. Blackube in this case, which is rechargeable by USB).

It is working properly now. It has trouble with a few tapes (in terms of w&f) but works fine for most. Compared to my DDII, it has more treble but less bass. The bass is not as powerful and deep. Mechanical noise is kind of loud (needs more lubrication). I can also hear some motor buzzing noise during the quiet session of the music. I think it is probably due to old capacitors. Dolby c does work, but I haven’t had the best experience with it so far. A huge bummer is that the buttons aren't very responsive. Film buttons really aren't great.

Walkman archive puts the white model of cp-c7 on the list of the cute and stylish designed walkman. I think my particular device isn’t that impressive visually. This model is also mentioned in the “which walkman sounds the best” article since its design is based on the best Aiwa. Mine does sound decent. Wish I could do a better job in terms of repairing and refurbishing the device.

Update: I lubricated the device recently and the mechanical noise got a lot quieter. The device also ran faster so I had to reduce it to standard speed. Motor buzzing noise from headphone output was also reduced significantly.

Kenwood CP-C7 modded to run on an USB-rechargeable AA battery

CP-C7 running on a 5V-to-1.5V convertor

Working on CP-C7

You can see the film buttons at the bottom

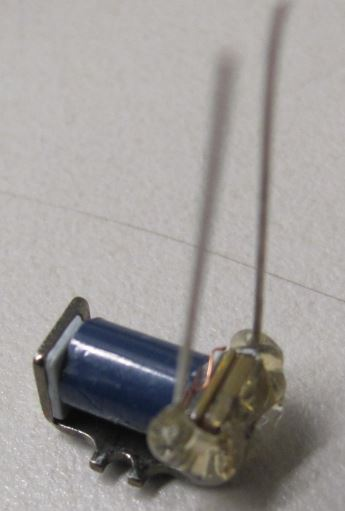

Rebuild the blue solenoid

Comments

Aiwa XK-009 overhaul

I won the yahoo auction for the legendary Aiwa XK-009 at about 45000 yen. It is considered to be the very best aiwa cassette deck from aiwa. Although it was working, as expected, there were some issues. The biggest problem was that it suffered from unusually high w&f, which was very audible. The previous owner installed the belt in a wrong way - the belt was wrapped around a screw. The belt was left with some rails-like groves. This deck is very sensitive to the belt. So I ordered a new set of belts from fixyouraudio. It was not the best belt for this machine (the best ones are from a website called something communication). I always ordered belts from fixyouraudio. I always had good results from them and expected no difference this time. The aiwa xk-009 was quite a pain to take apart. I took apart most of it except for the fast-forward/backward mechanism, which does not affect the performance. I removed the old oil and applied new oil (crc lubricant). The all belts were repla...

Sony wm D6 repair: muting module, speed control module, belt replacement, and recap

Just score a Sony wm-D6 in a good condition. The seller sold it as junk and untested. Maybe the seller (or whoever the previous owner is) actually tried and it did not work. I pulled the trigger anyway because the price (43000 yen) was not bad even for a non-working one. When it arrived earlier today, I tried it out and I was surprised that it actually played. Of course, there are some small issues, which I found and fixed later on. Muting Module The first problem I noticed was that the sound was crackling and a bit distorted. Later on it became intermittent (on and off). That happened even when it was in record monitor mode. I thought it was due to issues at the play-record switch, but no, cleaning the switch did not help. A quick search on tapeheads forum pointed me to the muting module. And indeed, removing the muting module made it play beautifully again (w&f about 0.05%rms). Time to buy a new muting module from scribbler_92 on ebay. Update (12/15/2022): the mute module from eb...

Attempting to improve the bass on my DD walkman

I saw a post on the tapeheads forum where mihokm posted his guide for improving the bass response on the DD walkman. He pointed out that many DD models had thin bass and it can be fixed by replacing the tantalum capacitor (potentially aging and faulty) between the NF pin and the bias pin of the BA3304F preamp chip. He said if that capacitor was faulty due to its age, it could lead to a weird peak around 100 Hz, which I has experienced before. Also, he said increasing the capacitor from 10uF to 47uF could improve the bass response. While my DDII does not have the same bass issue he described (20+dB drop at 20Hz), my D3 does, so I replaced the tantalum caps on my D3. I also replaced the electrolytic capacitors (from 220uF to 560uF polymer) before the headphones socket as instructed to lower the cutoff of the high-pass filters and thus further improve the bass response (kind of a shame because the "original" ones were Nichicon gold). 220uF is fine for high-impedance headphones...
