Aiwa XK-009 overhaul

I won the yahoo auction for the legendary Aiwa XK-009 at about 45000 yen. It is considered to be the very best aiwa cassette deck from aiwa. Although it was working, as expected, there were some issues. The biggest problem was that it suffered from unusually high w&f, which was very audible. The previous owner installed the belt in a wrong way - the belt was wrapped around a screw. The belt was left with some rails-like groves.

This deck is very sensitive to the belt. So I ordered a new set of belts from fixyouraudio. It was not the best belt for this machine (the best ones are from a website called something communication). I always ordered belts from fixyouraudio. I always had good results from them and expected no difference this time.

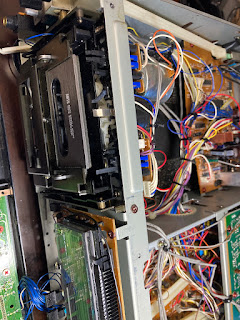

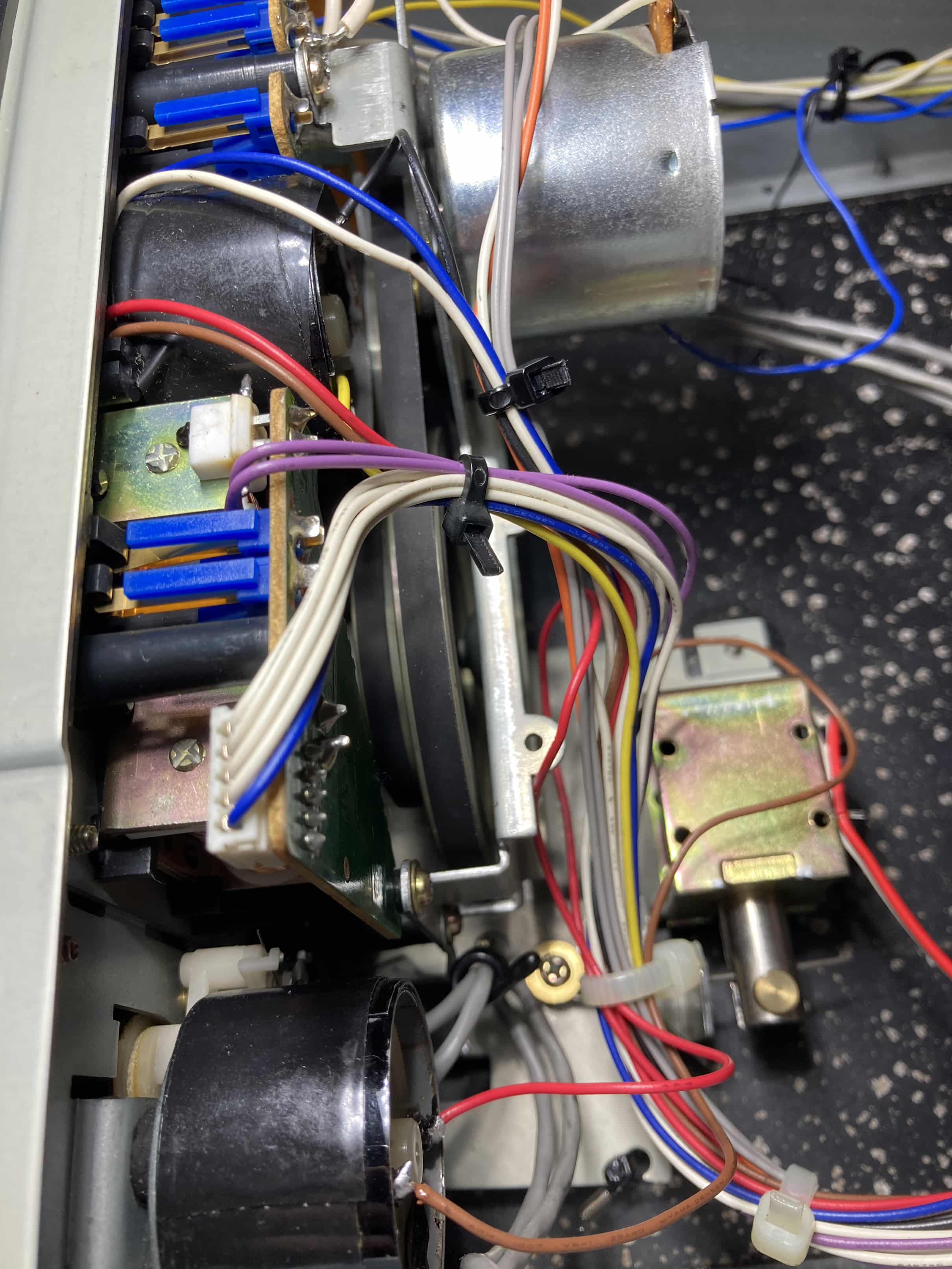

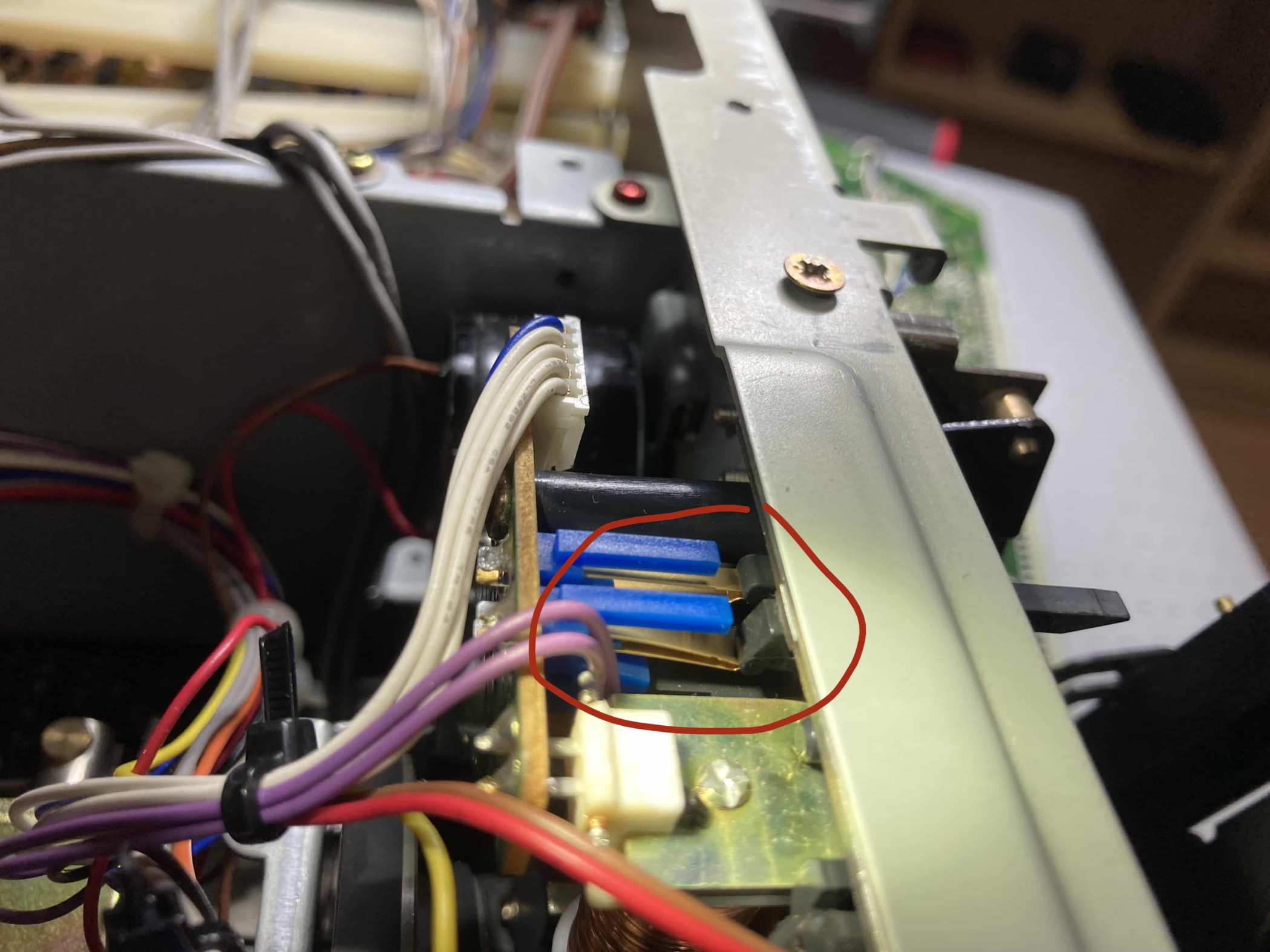

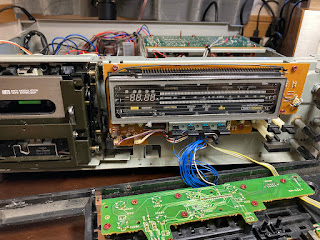

The aiwa xk-009 was quite a pain to take apart. I took apart most of it except for the fast-forward/backward mechanism, which does not affect the performance. I removed the old oil and applied new oil (crc lubricant). The all belts were replaced except for the idler wheel (only for fast-forward/backward). All was well except that the main capstan belt fell off easily when playing. Sanding the capstan flywheel surface solve the problem.

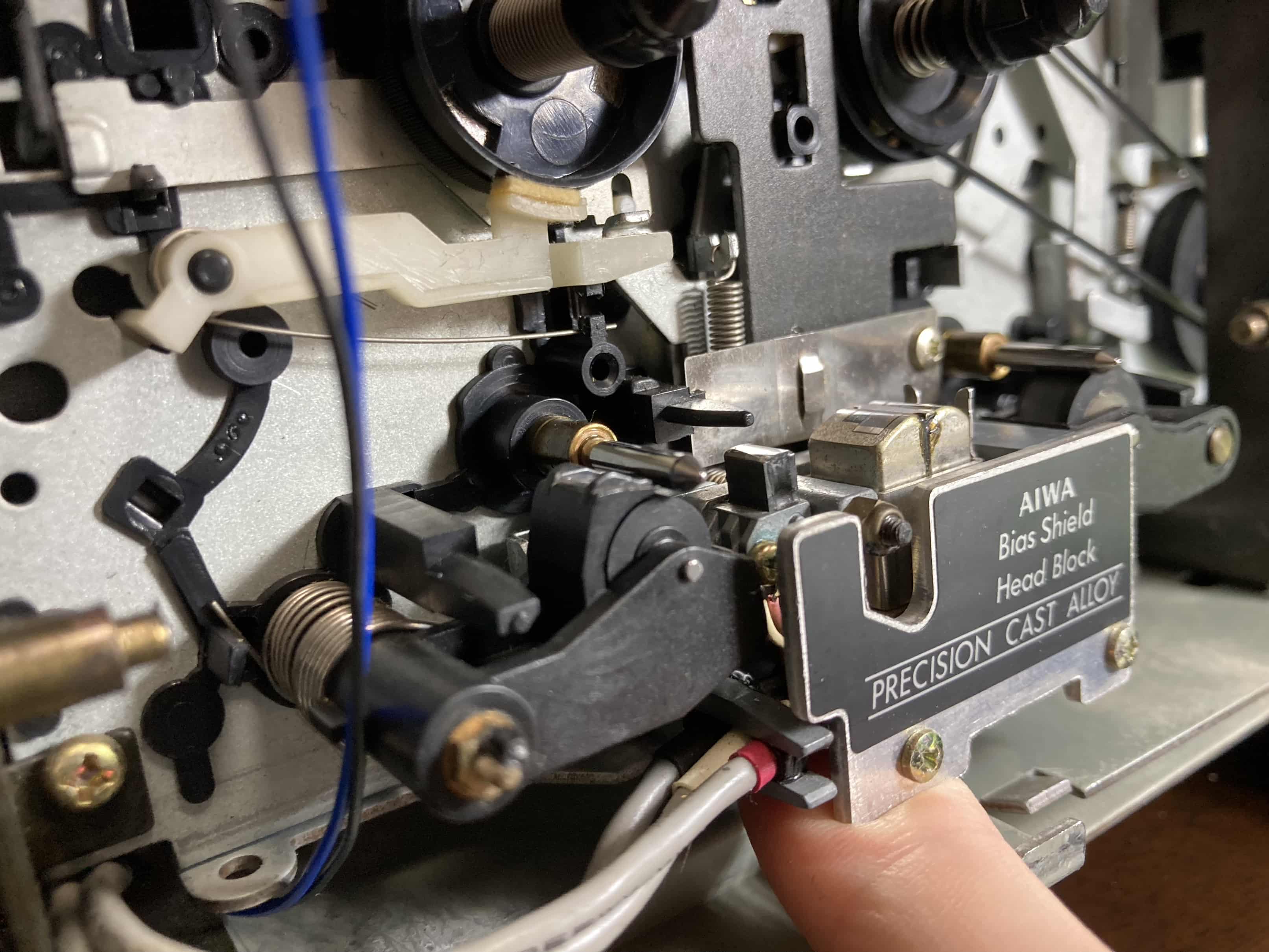

Correct alignment was performed much later when I purchased a set of alignment tapes from Germany. Only head azimuthal and tape path height can be adjusted for this deck (no head height adjustment but tape path adjustment will do) ( playback head and record head are connected and share the alignment).

Electronic calibration was also done.

Comments

Replacing the Capacitors in my DDII

It is time to recap my Sony wm-DDII. The device is more than 30 years old and the electrolytic capacitors need to be replaced. I got some nichicon fine gold audio grade capacitors. They are much bigger than the original. It was tough but I managed to fit in four nichicon. I can not do AB comparison but I think there is a significant improvement in terms of sound. The bass goes deeper and feels more powerful. The high is also improved. It sounds more detailed and dynamic than before. I am thinking if I should replace the remaining three capacitors later. Update: The rest of the capacitors were replaced with some ELNA "audio" capacitors from ebay (they are relatively cheap). ELNA "audio" capacitors

Repair my Sony D3 Walkman

The left channel of my Sony wm-d3 stopped working. At first, the sound just went in and out. It could get back to working with some twisting and shaking. So I thought it was just oxidation building up on switches and headphone jack, but it was not the case. At some point, it just stopped working altogether. After some quick diagnosis, I found that a wire connected to the cassette head was broken. The weird part was that it looked just fine, but my multimeter said it was not connected: it must be broken somewhere along the wire. I needed to replace the whole wire. The problem was that I needed a dual wire with shielding, and the ones I could find were fat. So I made one by myself by ripping the rubber tube off the fat one and adding some heat shrink as a shell. It was still fatter than the original but at least it fitted. It is not perfect, but it works just fine now. The Original Wires (yellow and blue) The New Wires (yellow and white)

Configure Cloud Backup for my RG351M

I just spent almost an afternoon trying to perform cloud backup for my RG351M portable game console. With this, even if the microSD card dies, I should still be able to restore the game save data and the configurations. This is done by rclone. I obviously didn't come up with this. I just follow the tutorial (and fight with the unstable hotel wifi). Rclone is set up to work relatively straightforwardly with major cloud services in the west. Unfortunately, many of them (such as Google and Mega) are censored in China for various reasons. OpenDrive works though (nice). After entering the necessary information into a command window, rclone will spit out the configuration file, which I will put in the right folder in my RG351M. The first run is slow. After that, it has been reasonably fast since the software only uploads the new/modified files. Using the mobile hotspot instead of the hotel wifi also helps speed things up.
